Description
Designed by Rossi Bianchi Lighting Design.
The Diamante stands out among the many systems for its original design and innovative emission control: the visual comfort is obtained by a combination of a functional dark louver, rhomboidal optics and a modern micro-prismatic diffuser. Inspired by Italian designers’ creativity, it has been reinterpreted as a unique product by Esse-ci. It is their response to whom appreciate technology, design and innovation.
As a stand-alone linear product it can be configured as a system by use of various accessories. It is also available in the Free version where the light modules of different lengths and wattage can be installed on false ceilings or joined to free profiles of various sizes.
The Diamante stands out among the many systems for its original design and innovative emission control: the visual comfort is obtained by a combination of a functional dark louver, rhomboidal optics and a modern micro-prismatic diffuser. Inspired by Italian designers’ creativity, it has been reinterpreted as a unique product by Esse-ci. It is their response to whom appreciate technology, design and innovation.
As a stand-alone linear product it can be configured as a system by use of various accessories. It is also available in the Free version where the light modules of different lengths and wattage can be installed on false ceilings or joined to free profiles of various sizes.
Specification Overview
LED modules with DPL technology diffuser UGR <19 and additional raster for glare control in injection-moulded vacuum metalized polycarbonate.
LED modules available in Low Power and High Power.
Removable and adjustable LED spot modules with 36° polycarbonate lens.
CCT: 3000K | 4000K
CRI>80 McAdams 3
Suspended, Surface and Recessed versions.
Life Time: L80/B50 >60.000h
Integrated Driver - Multiple control options.
Eye safety: risk-free (RG 0) in accordance with EN62471:2009
LED modules available in Low Power and High Power.
Removable and adjustable LED spot modules with 36° polycarbonate lens.
CCT: 3000K | 4000K
CRI>80 McAdams 3
Suspended, Surface and Recessed versions.
Life Time: L80/B50 >60.000h
Integrated Driver - Multiple control options.
Eye safety: risk-free (RG 0) in accordance with EN62471:2009

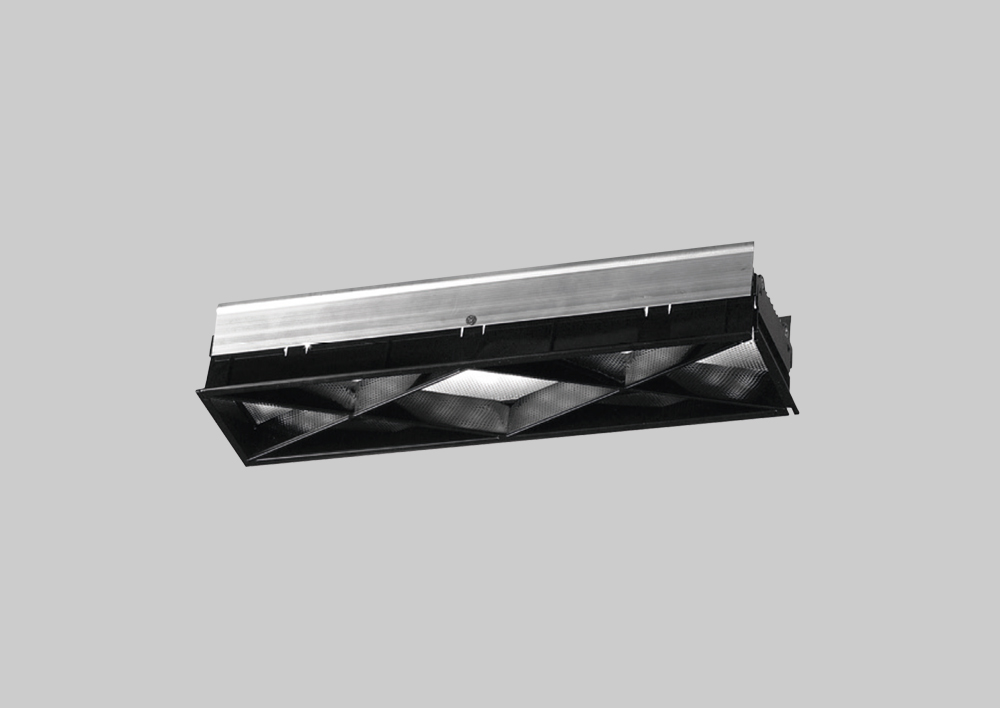

Diamante Free Low Power Module
Diamante Free Low Power Module
Recessed into Diamante free profile
3000K | 4000K
6W - 36W
510lm – 2988lm
Diamante Free High Power Module
Diamante Free High Power Module
Recessed into Diamante free profile
3000K | 4000K
10W - 60W
880lm – 5160lm

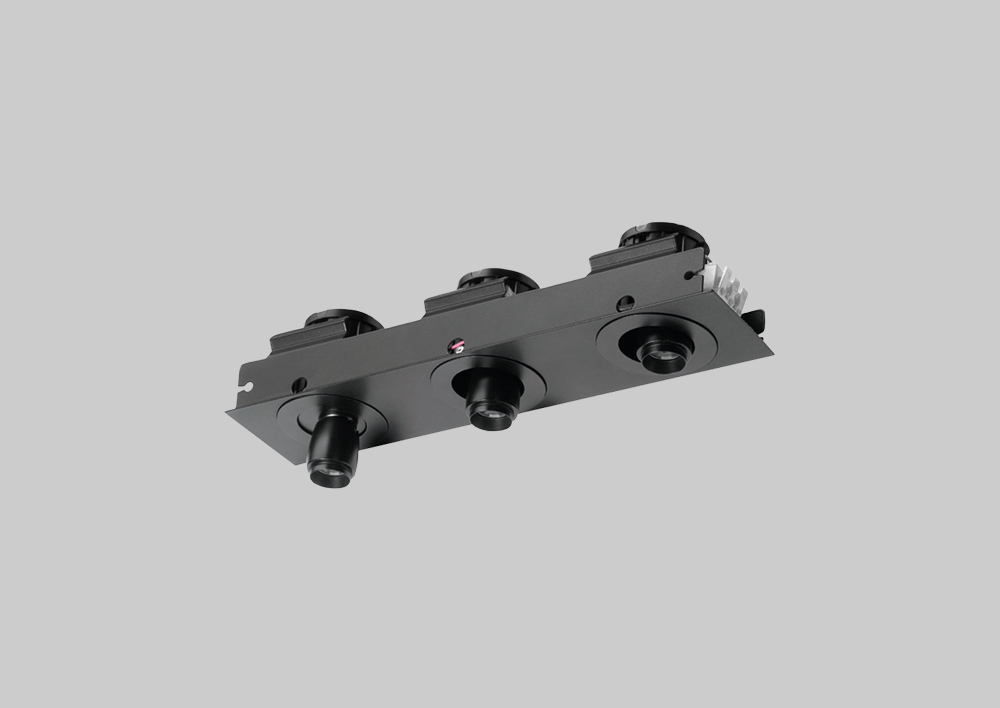

Diamante Free Spot
Diamante Free Spot
Removable and adjustable spot with polycarbonate lens 36° recessed into Diamante free profile
3000K | 4000K
3 x 3W
3 x 390lm/420lm

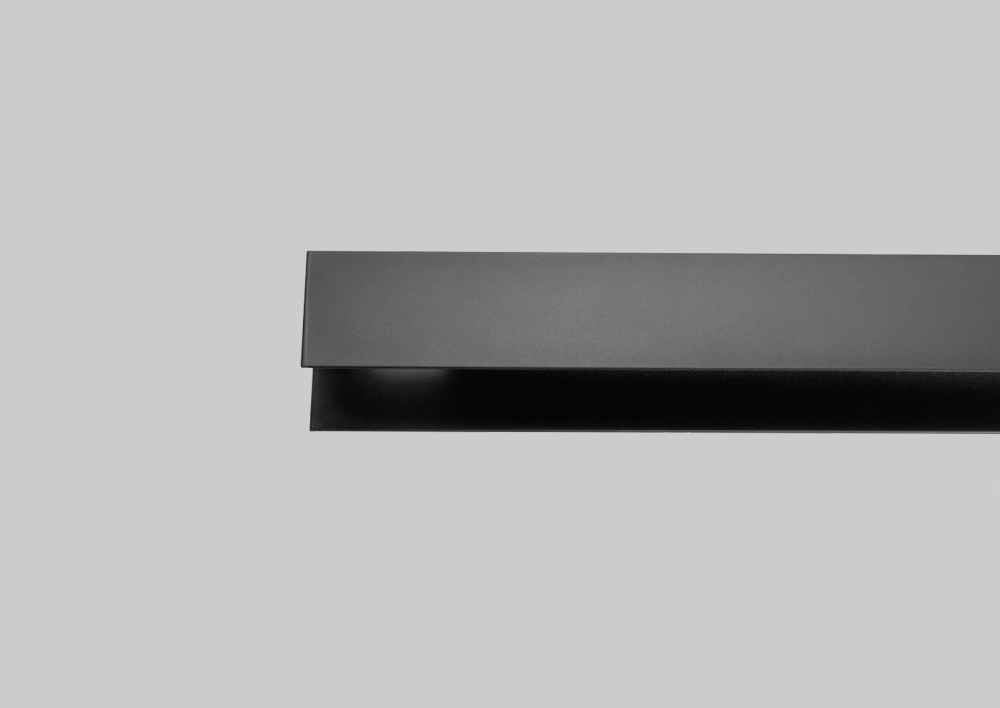

Diamante Free Profile
Diamante Free Profile
Aluminum body for ceiling, suspension or recessed applications.
